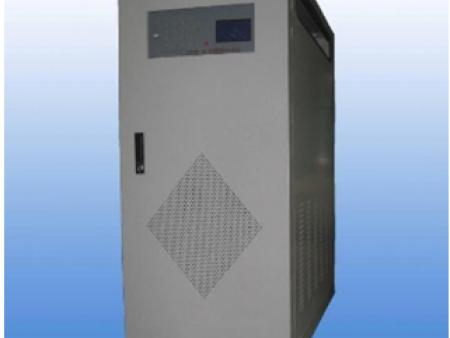

Programmable frequency conversion power supply

Introduction:

Adopting the Texas DSP digital signal processor (TMS320 series) SPWM frequency conversion power supply system, the main circuit including the rectifier circuit, inverter circuit and output filter is designed based on the Japanese Mitsubishi module and the German Optik module. Based on SPWM modulation principle, an improved regular sampling method is proposed to generate SPWM waves. In addition, the influence of dead zone is analyzed and two compensation methods are given. The real-time performance, reliability and compatibility of the controller are analyzed in detail to meet the needs of high- sampling. When controller hardware Phase-locked loop circuit is designed to meet the dead-time requirement of power module (IGBT / IPM). The hardware is designed with an independent hardware dead-time delay circuit. The system software of the controller is divided into man-machine interface program and control program . The man-machine interface program realizes real-time voltage and current data and its waveform display, control parameter display and on-line modification and other functions; control program to achieve the signal sampling analysis, PWM pulse modulation and trigger, PI controller and other programs.

The current frequency power supply, mainly controlled by the microcontroller. Limited by the performance of single-chip microcomputer, based on the SCM self-adapting frequency power system to use more look-up table method to generate PWM wave, so the flexibility is poor, not real-time frequency conversion transformer, based on DSP (digital signal processor) The ability to go around, a good solution to real-time, small size, compact structure, easy to use, improve reliability. DSP compared with the normal one-chip computer, the ability to deal with digital place to enhance 10-15 times, to ensure that the system has superior control performance.

Features:

The use of advanced direct digital frequency synthesizer waveform generation technology, high frequency stability, good continuity;

Measurement accuracy, the use of current half sine wave and its similar with the DC component of the various waveform test;

Full range of adjustable output voltage 0-150V, 0-300V, step 0.1V;

Output frequency 45-65HZ (40-500HZ optional), step 0.1HZ;

Output current limit function; With RS232 / 485 communication interface, the instruction execution time is less than 20ms;

Protection mode: overvoltage, overcurrent, overload, short circuit, current limit, etc;

Provide rms voltage, rms current, active power, frequency, power factor and other readings;

On the loading and unloading load, the regulator response time within 20ms, overload capacity, instantaneous current can withstand 3 times the rated current;

Voltage, frequency, time, digital keystroke, high degree

This machine will execute 30 sets of different voltage, frequency, rise time and running time in one time, and it can be tested for many times in a row.

Lightning, isolation, anti-interference, fast response time.

A multi-purpose machine, three-phase machines can be parallel into the same power single-phase machine to avoid duplication of investment waste.

Provide embedded intelligent PC monitoring system;

Work is stable and reliable, with capacity easy to enlarge, high efficiency, no waveform distortion.

Voltage and current regulation is stable, suitable for a wide range of loads, long-term continuous work, able to withstand transient overload.

Rapid protection, to ensure that equipment is not damaged after the class, with the input phase protection, anti-surge devices, the output over-voltage, over-current, overload, short circuit protection.

5.5-inch LCD screen shows the output status and fault types, easy to analyze and solve problems in time.

With small size, light weight, easy installation and so on;
